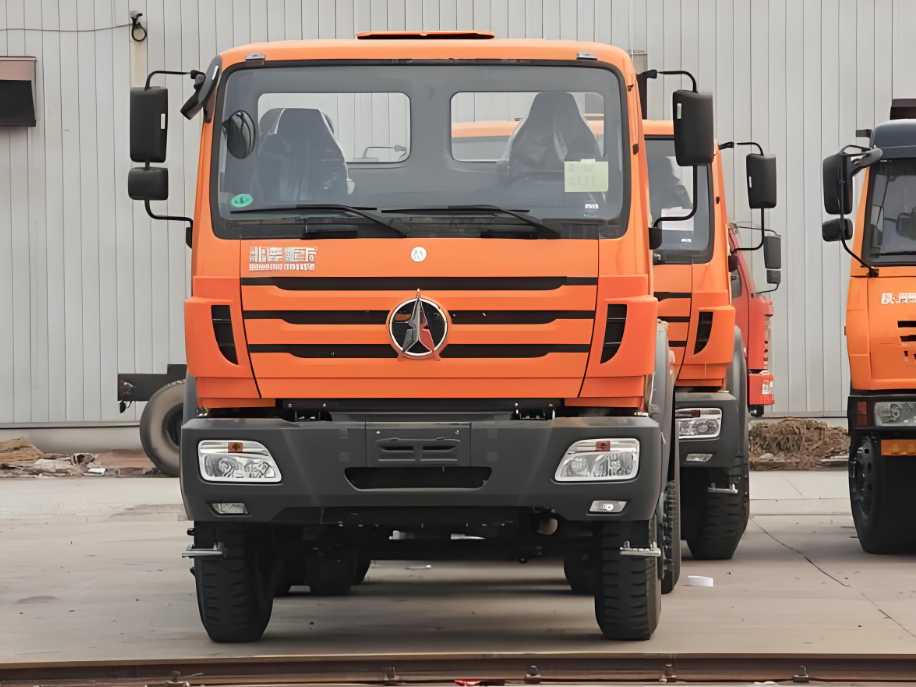

9-meter cargo truck
Category Item Unit Parameters Remarks Vehicle Overview Vehicle Name Truck Manufacturer Beiben Heavy-Duty Truck Group Co., Ltd. Chassis Model ND2250F**** Chassis Manufacturer Beiben Heavy-Duty Truck Group Co., Ltd. Drive Type 6X6 Dimensions Overall Dimensions
Sufficient stock available
A large fleet of specialized vehicles is available for fast delivery!
Delivery time
In-stock vehicles can be delivered within 1-3 days; customized models will be delivered according to the contract timeframe!
category | item eye | one Bit | parameter | Remark |
Vehicle Overview | Model Name |
| freight truck |
|
Manufacturer |
| Beiben Heavy-Duty Truck Group Co., Ltd. |
| |
Chassis Model |
| ND2250F**** |
| |
Chassis manufacturers |
| Beiben Heavy-Duty Truck Group Co., Ltd. |
| |
Drive type |
| 6X6 |
| |
Dimensions | External dimensions (length)(×width×height) approx. | mm | 11800×2500×3380 |
|
Cargo box dimensions (length)(×width×height) approx. | mm | 9000×2400×1300 |
| |
Cargo box materialBase plate thickness, side plate thickness (including rear door) | mm | /Side plate1.5mm, base plate3mm (with rear door) |
| |
Overall vehicle performance | Maximum driving speed | km/h | 70 |
|
Maximum gradeability | ° | 45° |
| |
Approach angle | ° | 20° |
| |
Departure angle | ° | 20.5° |
| |
Minimum ground clearance (front axle lower) |
| 339mm |
| |
Engine parameters | Engine Model/Manufacturing Unit/Place of Origin |
| WP12.400E201 |
|
Engine type |
| Large pump, inline six-cylinder, water-cooled |
| |
Engine rated power | kw/(rpm) | 294 |
| |
Engine maximum torque | nm/(r/min) | 1800 |
| |
Engine displacement | L | 12 |
| |
Fuel tank capacity | L | 600 |
| |
clutch, gearbox | Clutch type |
| Single-piece dry |
|
gearbox model/Manufacturing Unit/Place of Origin |
| 12JSD180T |
| |
forward gearReverse gear |
| 12/2 |
| |
Steering | Manufacturing unitOrigin |
| Hydraulic power steering |
|
Braking system | Service brakes |
| Dual-circuit air pressure braking |
|
Assist braking |
| Spring-powered braking |
| |
parking brake |
| Engine exhaust brake |
| |
bridge | Front axle specifications/Manufacturing Unit/Place of Origin |
| AL7/1DS-7 |
|
Middle Bridge Specifications and Models/Manufacturing Unit/Place of Origin |
| HD7/016DGS-13 |
| |
Rear axle specifications/Manufacturing Unit/Place of Origin |
| HL7/015DS-13 |
| |
driver's cab | Cab type/Configuration |
| China National Heavy Duty Truck Standard Cab |
|
Dashboard |
|
|
| |
Air conditioning |
| none |
| |
tire | Tire specifications (12.00R-20) / Brand / Manufacturer |
| 12.00R20 |
|
Number of tires (including spare tire) |
| 7 |
Product customization
If you cannot find a suitable product, you can also leave us a message and write down the product configuration you need. We will reply to you within 1-2 business days after receiving your message!
